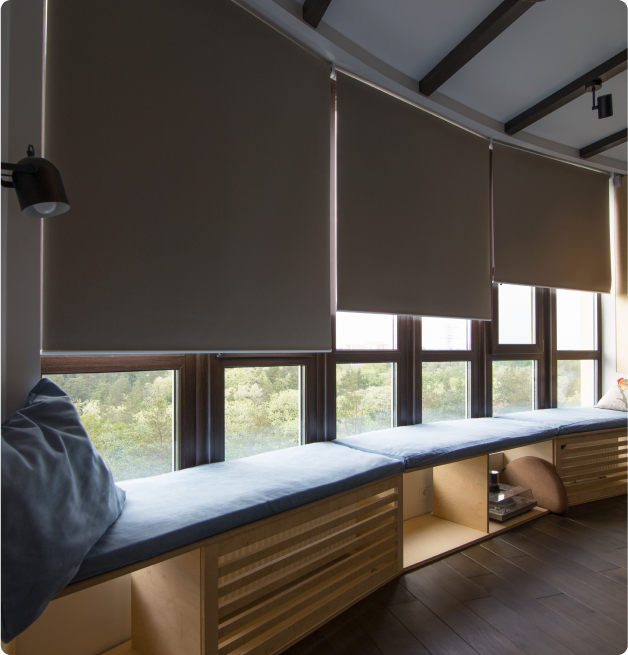

Roller Shade
Features Available:
- Cordless or with Chain Control
- Screen, Blackout, or Custom Fabrics
- Motorization Available: DC Battery Operated or Hard Wired for AC
- A Variety of Cassettes, Facias, and Faux Wood Valances are available
- Standard, Retail, or Bulk Packing
Contact us for more information.
Packaging
Each comes standard in a white box with Hardware Kit packet (4–6 per master carton, depending on size). Also available in UPS shippable box.
“Bulk-packing” available — for contract applications – eliminates unneeded cardboard waste, and allows for more efficient container packing. Contact us for more information.
Retail Packaging
Custom packaging and labeling is available for retail applications. Blinds can be packed in generic boxes with color labels,or fully customized to meet your needs.
Special Features
Bar coding, special labeling, specific requirements, and packaging is available. Our experienced staff can help you with your order and help you make the right choices when ordering blinds.
Programs Available
We make it easy to order blinds directly from our factory in China. Blinds can be ordered in 20 foot or 40 foot containers directly from our factory for the best value.
| Tube | Description | Part No. |
|---|---|---|
| Type | 38mm (1.5”) Aluminum Tube | 74001038 |
| Standard Tube used in Roller Shade Fabrication is 38mm (1.5”). When required, heavy duty tubes and clutch systems are used. Contact customer service for details |
| Bottom Bar | Description | Part No. |
|---|---|---|
| Type | Round Bottom Bar, Aluminum | 74002019 |
| Round Bottom Bar End Caps | 74012019 | |
| Oval Bottom Bar, Aluminum | 74002032 | |
| Oval Bottom Bar End Caps | 74012032 | |
| Warning Label | Attached to Bottom of Bottom Rail |
| Clutch/Operation System | Description | Part No. |
|---|---|---|
| Type | Standard System: 38mm Clutch with Retractable Post Idle | 74012019 |
| Installation Bracket Set | 74002032 | |
| Commercial Clutch System: Contact Customer Service | ||
| EZ Lift Cordless Operation System: Contact Customer Service |

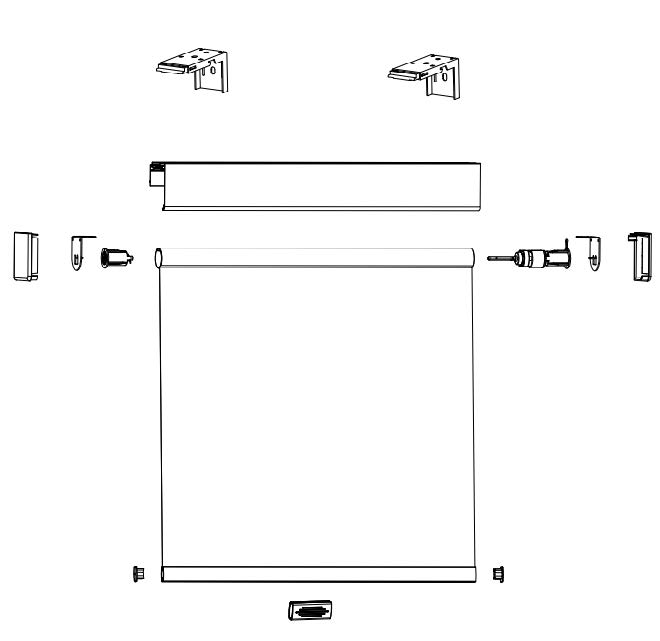

| Cassette/Fascia/Valance | Description | Part No. |
|---|---|---|
| Type | Aluminum | |
| Cassette with Curved Face | 74511100 | |
| Cassette Bracket Set | 74501065 | |
| Cassette Bracket Set Plastic Covers | 74511065 | |
| Cassette with Flat Face | ||
| Cassette Bracket Set | ||
| Cassette Bracket Set Plastic Covers | ||
| Fascia System: Contact Customer Service | 74803300 | |
| Valance Bracket | 70401120 | |
| Royal 3.25" | 90907XXX | |
| Flat Long 4.5" | 99902XXX | |
| Fauxwood | ||
| Valance Bracket | 70401120 | |
| Royal 3.25" | 90907XXX | |
| Flat Valance 4.5" | 99902XXX | |
| Commercial Clutch System: Contact Customer Service |
| Parts & Accessories | Description | Part No. |
|---|---|---|
| Top Rail | Top Rail Extrusion | 74711200 |
| Bracket | Spring Loaded Top Rail/Cassette Bracket | 74711260 |
| Bead Chain | Stainless Steel #10 Chain | 60607310 |
| #10 Stainless Steel Chain Connector | 60605000 | |
| Plastic #10 Chain | 60602300 | |
| #10 Plastic Chain Connector | 60605100 | |
| Metal Ball Stop | 60607510 | |
| Plastic Ball Stop | 60607522 | |
| Bead Chain Hold Down | Spring Loaded Hold Down | 74881200 |
| P-Clip | 50733100 | |
| Installation Brackets Screw | 4.0mm x 38mm Hex Drive Screw | |
| Hold Down Bracket Screw | 3.5mm x 16mm Screw |
| Packaging | Description | Part No. |
|---|---|---|
| Standard Packaging | Each Blind in Box with Hardware Kit 6 Blinds per Master Carton |
|
| Custom Packaging | Bulk Packing: Contact Customer Service Retail Packaging: Contact Customer Service |
